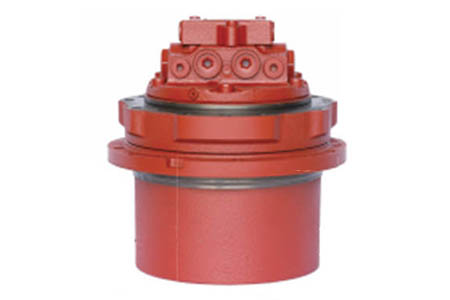

The travel motor of an excavator is a critical component of its mobility system, and its performance directly affects the operational efficiency and reliability of the excavator. The following will detail the working principles of the excavator travel motor and the functions of its various components.

1. Motor Startup and Power Supply

The startup of the excavator travel motor relies on a stable power supply. The motor is typically designed for direct current (DC) or alternating current (AC) drive, depending on the model and design requirements of the excavator. When power is connected to the motor, current flows through the motor's coils, generating a magnetic field that interacts with the permanent magnets inside the motor, thus driving the motor to rotate.

2. Internal Structure of the Motor

The internal structure of the motor typically consists of a stator, a rotor, bearings, end caps, etc. The stator is wound with coils that generate a magnetic field when current passes through them. The rotor, usually made of permanent magnets, interacts with the stator's magnetic field, creating a rotational torque. Bearings support the rotor, reducing friction and wear, while end caps fix and seal the motor, ensuring the stability and safety of its internal structure.

3. Oil-Driven Transmission

The operation of the excavator travel motor is often powered by an oil transmission system. Pressurized oil, delivered by a hydraulic pump, is directed through piping to the motor, driving its rotation. The motor is equipped with seals and oil passages to ensure that the oil can circulate internally, effectively transmitting power.

4. Motor Speed and Control

The rotational speed of the motor can be adjusted through the control system. The control system can regulate the output pressure of the hydraulic pump according to operator instructions or an automatic control system, thereby altering the motor's speed and output power. Additionally, precise control over motor speed can be achieved by adjusting the flow rate of the oil.

5. Direction Control Mechanism

Direction control of the excavator travel motor is typically achieved through a direction control valve. This valve alters the flow direction of the oil based on operator input, resulting in forward or reverse rotation of the motor and subsequent control over the excavator's travel direction.

6. Motor Efficiency and Heat Dissipation

During operation, the motor generates heat, which requires a cooling system for dissipation. The cooling system typically includes a radiator, fan, and other components that circulate coolant or air, dissipating the heat generated by the motor into the surrounding environment, ensuring it operates within a normal temperature range. Regular maintenance and servicing of the motor, such as changing lubricating oil and cleaning the internal structure, are also essential for maintaining its efficiency.

7. Fault Diagnosis and Maintenance

The excavator travel motor may encounter various faults during operation, such as difficult startup, unstable speed, and malfunctioning direction control. Timely fault diagnosis and maintenance are crucial. Fault diagnosis is typically conducted by inspecting the motor's appearance, listening to its operating sound, and measuring voltage and current. Repairs or replacement of relevant components should be carried out promptly upon identifying faults to ensure the normal operation of the excavator travel motor.

In conclusion, the travel motor is the core component of an excavator's mobility system, and its working principles involve multiple aspects. Understanding and mastering these knowledge areas are essential for excavator operators and maintenance personnel. Correct operation and maintenance can ensure the long-term stable operation of the excavator travel motor, improving the overall performance and service life of the excavator.
