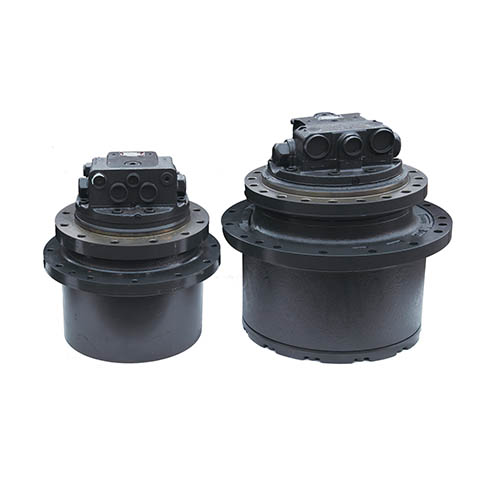

A speed reduction gear being atteched ot it , the unit is a hydraulic motor which enables conversion from high-speed low torque to low-speed high torque and vice versa.
It is a motor of high pressure and capacity which has optimalized evry part of the motor.
It is used in various areas, including construction machinery, industrial machinery and vehicles with special equipment.
|
Model |
Max Output Torque N.m(kgf.m) |
Max Pressure Mpa(kgf/c㎡) |
Max Speed (rpm) |
Rated Flow (ℓ/min)) |
Application |
| TM07VA | 6,576(671) | 29.4(300) | 3,500 | 140 | 5~6T |
| TM07VC | 7,164(731) | 34.3(350) | 3,900 | 195 | 5~6T |
| TM18VC | 18,130(1,850) | 34.3(350) | 3,200 | 275 | 10~13T |
| TM22VC | 22,050(2,250) | 34.3(350) | 3,200 | 275 | 13~18T |
| TM24VA | 23,520(2,400) | 34.3(350) | 2,800 | 390 | 13~18T |
| TM30VC | 29,400(3,000) | 34.3(350) | 2,800 | 440 | 18~25T |
| TM40VC | 39,200(4,000) | 34.3(350) | 2,400 | 440 | 18~25T |
| TM40VD | 43,120(4,400) | 34.3(350) | 2,800 | 440 | 18~25T |
| TM60VC | 58,800(6,000) | 34.3(350) | 2,600 | 500 | 29~34T |
| TM70VC | 68,600(7,000) | 34.3(350) | 2,600 | 500 | 34~36T |
| TM100VC | 23,520(2,400) | 34.3(350) | 2,700 | 750 | 45~55T |
| Model | A | B | C | D | E | F | G | H | J | K | L | M | N | P |
| TM07VA | 340 | 268 | 306 | 119 | 68 | 244 | 210 | 250 | 282 | 12-M14×P2.0 | 12-M14×P2.0 | PF1/2 | PF3/8 | PF1/4 |
| TM07VC | 354 | 268 | 306 | 124 | 68 | 244 | 210 | 250 | 282 | 12-M14×P2.0 | 12-M14×P2.0 | PF1/2 | PF3/8 | PF1/4 |
| TM10VD | 353 | 278 | 328 | 120 | 80 | 250 | 210 | 265 | 300 | 12-M16×P2.0 | 12-M16×P2.0 | PF1/2 | PF3/8 | PF1/4 |
| TM10VC | 389 | 298 | 362 | 134 | 88 | 270 | 230 | 292 | 332 | 15-M16×P2.0 | 12-M16×P2.0 | PF3/4 | PF1/2 | PF1/4 |
| TM18VC | 392 | 308 | 394 | 134 | 99 | 280 | 246 | 324 | 364 | 20-M16×P2.0 | 15-M16×P2.0 | PF3/4 | PF1/2 | PF1/4 |
| TM22VC | 398 | 308 | 394 | 124 | 99 | 280 | 300 | 324 | 364 | 20-M16×P2.0 | 18-M16×P2.0 | PF3/4 | PF1/2 | PF1/4 |
| TM24VA | 418 | 370 | 432 | 138 | 99 | 340 | 300 | 362 | 402 | 30-M16×P2.0 | 30-M16×P2.0 | PF1, PF3/4 | PF1/2 | PF1/4 |
| TM30VC | 464 | 372 | 433 | 138 | 99 | 340 | 300 | 362 | 402 | 30-M16×P2.0 | 30-M16×P2.0 | PF1, PF3/4 | PF1/2 | PF1/4 |
| TM35VA | 540 | 370 | 470 | 171 | 98 | 340 | 300 | 362 | 440 | 30-M16×P2.0 | 30-M16×P2.0 | SAE 1 | PF1/2 | PF1/4 |
| TM40VC | 540 | 370 | 470 | 159 | 98 | 340 | 300 | 402 | 440 | 30-M16×P2.0 | 30-M16×P2.0 | SAE 1 | PF1/2 | PF1/4 |
| TM40VC | 502 | 370 | 470 | 138 | 98 | 340 | 300 | 402 | 440 | 30-M16×P2.0 | 30-M16×P2.0 | SAE 1 | PF1/2 | PF1/4 |
| TM50/60VC | 569 | 462 | 525 | 175 | 112 | 425 | 380 | 450 | 490 | 20-M20×P2.5 | 24-M20×P2.5 | SAE 1 | PF1/2 | PF1/4 |
| TM60VD | 560 | 460 | 525 | 175 | 112 | 425 | 380 | 450 | 490 | 26-M20×P2.5 | 26-M20×P2.6 | SAE 1 | PF1/2 | PF1/4 |
| TM70VC | 569 | 462 | 525 | 175 | 112 | 425 | 380 | 450 | 490 | 26-M20×P2.5 | 24-M20×P2.7 | SAE 1 | PF1/2 | PF1/4 |
| TM70VD | 560 | 460 | 525 | 175 | 112 | 425 | 380 | 450 | 490 | 26-M20×P2.5 | 26-M20×P2.8 | SAE 1 | PF1/2 | PF1/4 |
| TM100VD | 656 | 500 | 586 | 197 | 130 | 460 | 420 | 510 | 550 | 30-M20×P2.5 | 30-M20×P2.9 | SEA 1-1/4 | PF1/2 | PF1/4 |
