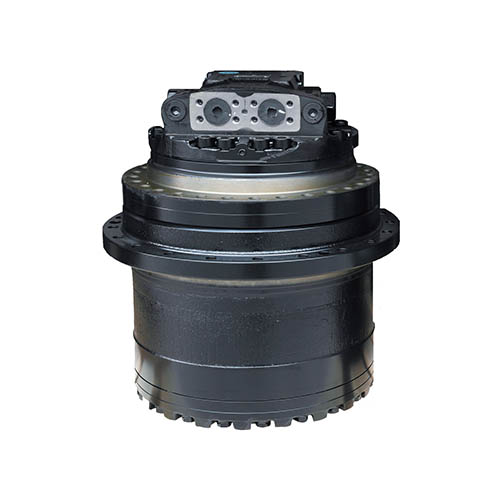

A speed reduction gear being atteched ot it , the unit is a hydraulic motor which enables conversion from high-speed low torque to low-speed high torque and vice versa.
It is a motor of high pressure and capacity which has optimalized evry part of the motor.
It is used in various areas, including construction machinery, industrial machinery and vehicles with special equipment.
Model | Max Output Torque N.m(kgf.m) | Max Pressure Mpa(kgf/c㎡) | Max Speed (rpm) | Rated Flow (ℓ/min)) | Application |
| TM07VA | 6,576(671) | 29.4(300) | 3,500 | 140 | 5~6T |
| TM07VC | 7,164(731) | 34.3(350) | 3,900 | 195 | 5~6T |
| TM18VC | 18,130(1,850) | 34.3(350) | 3,200 | 275 | 10~13T |
| TM22VC | 22,050(2,250) | 34.3(350) | 3,200 | 275 | 13~18T |
| TM24VA | 23,520(2,400) | 34.3(350) | 2,800 | 390 | 13~18T |
| TM30VC | 29,400(3,000) | 34.3(350) | 2,800 | 440 | 18~25T |
| TM40VC | 39,200(4,000) | 34.3(350) | 2,400 | 440 | 18~25T |
| TM40VD | 43,120(4,400) | 34.3(350) | 2,800 | 440 | 18~25T |
| TM60VC | 58,800(6,000) | 34.3(350) | 2,600 | 500 | 29~34T |
| TM70VC | 68,600(7,000) | 34.3(350) | 2,600 | 500 | 34~36T |
| TM100VC | 23,520(2,400) | 34.3(350) | 2,700 | 750 | 45~55T |
| Model | A | B | C | D | E | F | G | H | J | K | L | M | N | P |
| TM07VA | 340 | 268 | 306 | 119 | 68 | 244 | 210 | 250 | 282 | 12-M14×P2.0 | 12-M14×P2.0 | PF1/2 | PF3/8 | PF1/4 |
| TM07VC | 354 | 268 | 306 | 124 | 68 | 244 | 210 | 250 | 282 | 12-M14×P2.0 | 12-M14×P2.0 | PF1/2 | PF3/8 | PF1/4 |
| TM10VD | 353 | 278 | 328 | 120 | 80 | 250 | 210 | 265 | 300 | 12-M16×P2.0 | 12-M16×P2.0 | PF1/2 | PF3/8 | PF1/4 |
| TM10VC | 389 | 298 | 362 | 134 | 88 | 270 | 230 | 292 | 332 | 15-M16×P2.0 | 12-M16×P2.0 | PF3/4 | PF1/2 | PF1/4 |
| TM18VC | 392 | 308 | 394 | 134 | 99 | 280 | 246 | 324 | 364 | 20-M16×P2.0 | 15-M16×P2.0 | PF3/4 | PF1/2 | PF1/4 |
| TM22VC | 398 | 308 | 394 | 124 | 99 | 280 | 300 | 324 | 364 | 20-M16×P2.0 | 18-M16×P2.0 | PF3/4 | PF1/2 | PF1/4 |
| TM24VA | 418 | 370 | 432 | 138 | 99 | 340 | 300 | 362 | 402 | 30-M16×P2.0 | 30-M16×P2.0 | PF1, PF3/4 | PF1/2 | PF1/4 |
| TM30VC | 464 | 372 | 433 | 138 | 99 | 340 | 300 | 362 | 402 | 30-M16×P2.0 | 30-M16×P2.0 | PF1, PF3/4 | PF1/2 | PF1/4 |
| TM35VA | 540 | 370 | 470 | 171 | 98 | 340 | 300 | 362 | 440 | 30-M16×P2.0 | 30-M16×P2.0 | SAE 1 | PF1/2 | PF1/4 |
| TM40VC | 540 | 370 | 470 | 159 | 98 | 340 | 300 | 402 | 440 | 30-M16×P2.0 | 30-M16×P2.0 | SAE 1 | PF1/2 | PF1/4 |
| TM40VC | 502 | 370 | 470 | 138 | 98 | 340 | 300 | 402 | 440 | 30-M16×P2.0 | 30-M16×P2.0 | SAE 1 | PF1/2 | PF1/4 |
| TM50/60VC | 569 | 462 | 525 | 175 | 112 | 425 | 380 | 450 | 490 | 20-M20×P2.5 | 24-M20×P2.5 | SAE 1 | PF1/2 | PF1/4 |
| TM60VD | 560 | 460 | 525 | 175 | 112 | 425 | 380 | 450 | 490 | 26-M20×P2.5 | 26-M20×P2.6 | SAE 1 | PF1/2 | PF1/4 |
| TM70VC | 569 | 462 | 525 | 175 | 112 | 425 | 380 | 450 | 490 | 26-M20×P2.5 | 24-M20×P2.7 | SAE 1 | PF1/2 | PF1/4 |
| TM70VD | 560 | 460 | 525 | 175 | 112 | 425 | 380 | 450 | 490 | 26-M20×P2.5 | 26-M20×P2.8 | SAE 1 | PF1/2 | PF1/4 |
| TM100VD | 656 | 500 | 586 | 197 | 130 | 460 | 420 | 510 | 550 | 30-M20×P2.5 | 30-M20×P2.9 | SEA 1-1/4 | PF1/2 | PF1/4 |
