PRODUCT DETAILS

Performance

MODEL	Max. output torque (Reducer)		Motor displace-ment		Gear ratio	Max. speed (Motor)		Max. flow	Normal pressure **	Peak pressure	Mechanical brake torque		Automatic shift pressure	Relief valve	Mass	Typical vehicle application
	Low speed	High speed	Low speed	High speed		Low speed	High speed				Reducer	Motor
	Nㆍm		cc/r			rpm		l / min	bar	bar	Nㆍm		bar		kg	Ton
0161	1666	x	16.1	x	31	1056	x	23	214	255	547	18	x	x	25	1.5
0162	3018	1915	16.4	10.4	53.7	2134	3365	35	220	260	2631	49	x	x	38	3.5
0163	2785	1936	16.4	11.4	42.7	2134	3070	35	250	280	1591	37	180	x	30	2~3
018	3317	1864	18	10.1	53.7	1944	3465	35	220	260	2631	49	x	x	38	3.5
021	3696	1969	21	11.2	53.7	1667	3125	35	220	260	2637	49	x	▲	38	3.5
023	4724	2955	23.5	14.7	53.7	1489	2381	35	240	285	2631	49	x	▲	38	3.5
041	10336	6560	41.1	26.1	53.7	1800	2835	74	300	355	8041	150	243	●	87	7.5
044	6831	3528	43.7	22.7	45.5	1259	2423	55	220	260	3746	82	x	●	79.5	5
	8056	4185	43.7	22.7	53.7	1259	2423	55	280	300	4421	82	x	●	79.5	5~6
047	11711	6909	46.6	275	53.7	1622	2744	76	300	360	3869	82	x	●	87	7
053	11720	6909	53.2	31.4	47	1597	2710	85	300	360	3869	82	x	●	89	7~8
067	18707	11452	67.3	41.2	54	1664	2718	112	330	395	10584	196	290	●	140	11
076	23549	13775	76.62	44.8	54	1612	2757	124	365	430	10425	193	290	●	135	14
0762	23549	11671	76.62	37.9	54	1631	3294	125	365	430	10425	193	290	●	135	14
118	32535	19852	118	72	50.5	1864	3056	220	350	420	21648	480	260	●	300	16
147	41548	26940	146.5	95	50.5	1707	2632	250	360	430	24250	480	260	●	300	20~22
155	61671	35257	154.8	88.5	73	1718	3005	275	350	420	28607	392	270	●	404	29~32
168	46433	28263	168.4	102.5	50.5	1469	2413	248	350	420	24250	480	260	●	310	25
173	65010	37976	173	101	73	1561	2673	270	330	395	28607	392	270	●	404	33
185	72892	44972	185	114.1	70.2	1557	2523	288	360	430	30537	435	x	●	425	36~38
274	94438	59016	274.6	171.6	63	1383	2214	380	350	420	63592	1009	x	●	610	45~50

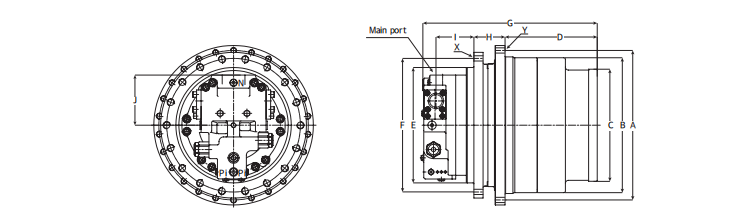

Dimensions

MODEL	ØA	ØB	ØC	D	ØE	ØF	G	H	I	J	X	Y	Main Port
161.2	180	160	154	99.5	150	170	214	40	58.5	39	10-M10	9-M10	2-G3/8 (2-PF3/8)
0163	200	160	159	114.5	150	190	251.5	40	77		8-M10	8-M10	2-G3/8(2-PF3/8)
018	215	190	188	132	165	192	257.3	50	47.5		9-M12	9-M12	2-G1/2(2-PF1/2)
021	232	204	196	132	165	192	257.5	50	55.5	51	9-M12	10-M12	2-G1/2 (2-PF1/2)
023	232	204	196	132	165	192	257.5	50	55.5	51	9-M12	10-M12	2-G1/2 (2-PF1/2)
041	300	265	248	150.5	210	250	347	80	74	76.5	12-M16	12-M14	2-G1/2 (2-PF1/2)
044	282	250	244	155	210	244	342	68	76	74	12-M14	12-M14	2-G1/2 (2-PF1/2)
047	300	265	244	148.5	210	250	351.5	80	74	74	12-M16	12-M14	2-G1/2 (2-PF1/2)
053	300	265	261	149	210	250	344	80	72	76	12-M16	12-M14	2-G1/2 (2-PF1/2)
067	364	324	320	204	225	320	400	83	88.5	74	16-M16	15-M16	2-1-1/16-12 UNF-2B
076	364	324	320	193	246	280	396.5	98.5	81	74	20-M16	21-M16	2-G3/4 (2-PF3/4)
118	440	402	400	250	300	340	515.5	98.5	123	90	30-M16	12-M12	Φ25 Flange, 2-G1(2-PF1)
147	440	402	400	250	300	340	515.5	98.5	123	90	30-M16	30-M16	Φ25 Flange, 2-G1(2-PF1)
168	440	402	400	250	300	340	515.5	98.5	123	90	30-M16	30-M16	Φ25 Flange, 2-G (2-PF1)
155	492	450	369	305	380	440	572.5	102.5	103	165	18-M24	26-M20	Φ25 Flange
173	492	450	369	305	380	440	572.5	102.5	103	165	18-M24	26-M20	2-G1 (2-PF1)
185	490	450	369	295.5	380	425	572.5	112	103	165	26-M20	24-M20	Φ25 Flange
274	605	556	472	326.5	420	460	651.5	130	134	156.5	24-M20	24-M22	Φ32 Flange
