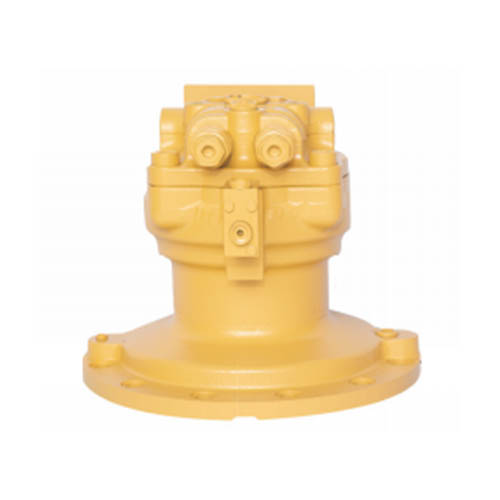

EATON SWING MOTOR

GET A QUPTE

Service Hotline:

TEL:+86 18660575589

EMAIL:info@develon-part.com

PRODUCT DETAILS

Performance

MODEL		Motor Displacement				Max. Output Torque						Gear Ratio			Reducer Max. speed			Max. Flow			Normal Pressure*				Peak pressure					Mechanical Brake Torque (Motor)						Time Delay Valve		Anti- reverse valve		Output Pinion										Mass		Typical vehicle application
		cc/rev				N.m									rpm			l/min			bar				bar					N.m										Module						Number				kg		Ton
029		29				1929						19.5			63			35.6			230				276					137						●		x		7						13				75		5~6
030		30				2118						19.5			60			35.6			230				276					137						●		x		7						13				75		5~6
033		33				2277						19.5			63			40			230				276					137						●		x		7						13				75		5~6
036		36				2569						19.5			51			36			230				276					137						●		x		7						13				75		5~6
043		43				2873						19.5			72			60			230				276					137						●		x		8						12				75		5~7
047		47				3182						19.5			74			68			230				276					137						●		●		8						12				77		7~8
048		48				3182						19.5			74			68			230				276					137						●		●		8						12				77		7~8
053		53				3034						19.5			78			81			230				276					137						●		x		8						12				77		7~8
064		64				4565						19.0			107			130			280				336					245						●		●		10						12				112		12~14
068		68				4850						19.0			101			130			280				336					245						●		●		10						12				112		12~14
080		80				5727						19.0			95			140			280				336					300						●		●		10						12				116		14
118		118				8122						17.6			82			170			280				336					579						●		●		12						13				237		17~18
151		151				9977						17.6			84			225			280				336					579						●		●		12						13				237		22, 45
169		169				17787						23.6			62			250			320				385					686						●		●		14						15				240		29
195		195				18331						22.0			58			250			320				385					864						●		●		14						14				400		30~33
233		233				23166						22.0			56			288			320				385					1049						●		●		14						15				440		33~36
250		250				24858						22.0			52			288			320				385					1049						●		●		14						15				440		33~36, 120

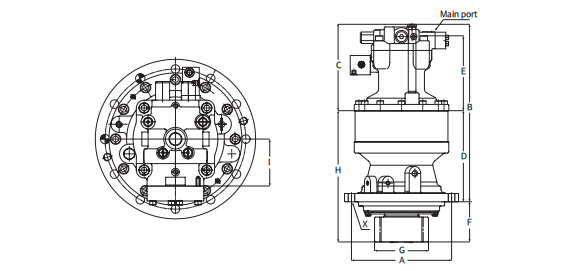

Dimensions

MODEL		ØA				B						C					D			E		F							ØG						H			I					X					Main Port
029		275				405						210					194			184		98							112						292			72					7-Φ17					2-G1/2 (2-PF1/2)
030		275				405						210					194			184		98							112						292			72					7-Φ17					2-G1/2 (2-PF1/2)
033		275				405						210					194			184		98							112						292			72					7-Φ17					2-G1/2 (2-PF1/2)
036		275				402						208					194			178		98							112						292			72					7-Φ17					2-G1/2 (2-PF1/2)
043		275				399						205					194			178		106							120.8						300			72					7-Φ17					2-G1/2 (2-PF1/2)
047		275				410.5						216.5					194			189.5		105							120.8						299			72					7-Φ17					2-G1/2 (2-PF1/2)
048		275				442.5						249.5					193			189.5		127							109.4						320			75					7-Φ18					2-G1/2 (2-PF1/2)
053		275				410.5						216.5					199			189.5		106.2							1178						305.2			72					7-Φ17					2-G1/2 (2-PF1/2)
064		290				468						234					234			196		113							143						347			97					9-Φ18					Φ13 Flange
068		290				468						234					234			196		113							143						347			97					9-Φ18					Φ13 Flange
080		290				496						248					248			208		115							143						363			97					9-Φ18					Φ13 Flange
118		360				632						298					334			248		143							194						477			121					11-Φ22					Φ20 Flange
151		360				632						298					334			248		143							194						477			121					11-Φ22					Φ20 Flange
169		520				698						302					396			257		179							238						575			120					15-Φ22					Φ20 Flange
195		430				737						342					395			258		184							232						579			112					12-Φ26					Φ25 Flange
233		430				804						393					411			345		205							238						616			148					12-Φ26					Φ26 Flange
250		430				804						393					411			345		205							238						616			148					12-Φ26					Φ26 Flange
