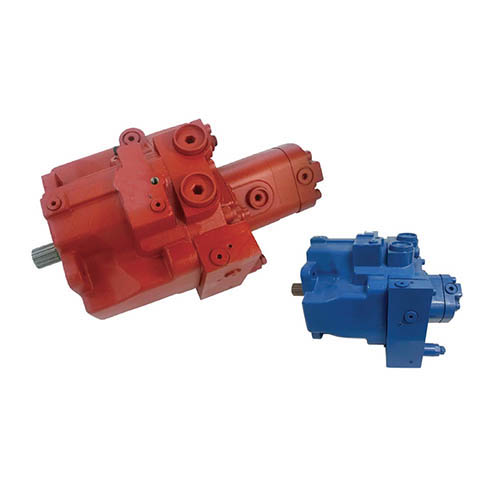

These parts are used for the running, turning and winching of construction, agricultural and industrial machinery.
This is light, compact and highly durable unit and designed for harsh torque and pressure changes like rapid
acceleration & deceleration, frequent reverse & forward rotation.
Model | Displacement (c㎡/rev) | Max Pressure (kgf/c㎡) | Max Speed (rpm) | Max Input Torque N-m(kgf-m) | Application |
| T5VP2D27 | 27.3×2 | 24.5(250) | 2700 | 137.2(14) | 5~6T |
| T5V63DP | 63×2 | 34.3(350) | 3250 | 343(35) | 13~14T |
| T5V80DP | 80×2 | 34.3(350) | 3000 | 529.2(54) | 14~17T |
| T5V80DPP | 80×2 | 34.3(350) | 3000 | 529.2(54) | 14~17T |
| T5VP2D28 | 27.5×2 | 33.0(250) | 2600 | (14) | |
| T5VP2D36 | 36×2 | 47.0(300) | 2100 | (16.7) |
