Sectional type of our company basically has following features.
It has the lower loss in the pressure by independently designed oil path.
Circuit can be consisted freely according to its simplification by the conversion of cartridge of various accessary valve.
By perfactly well keeping in contacted area clearance and using the seal & wiper seal that has low friction, it comes to have flexible lever manipulation and high-durability.
By equipping the low pressure o-ring, it can minimize the problem of oil split from the bonding parts of section.
Mini MCV:
Item | Specification | Remark | ||
Control Type | Open Center | |||
Rated | Pressure | 270 bar | ||
Flow | 160 lpm | |||
Spool Control Type | Pilot | |||
Overload Relife | 70~270 bar | |||
Lift Holding | O | |||
Tilt Lock | O |

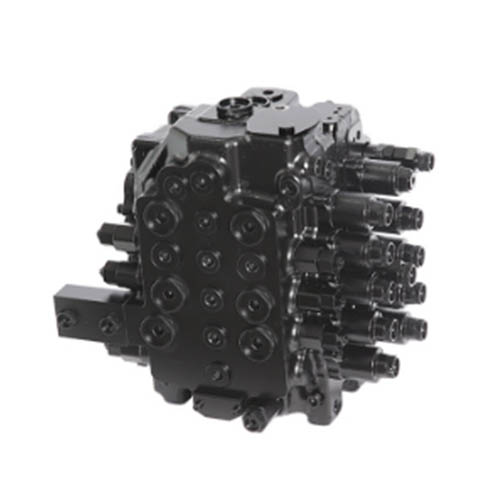

Item | Specification | Remark | ||
Control Type | Negacon | |||
Rated | Pressure | 350 bar | ||
Flow | 170 lpm | |||
Overload Relife | 160~380 bar | |||
Priority Function | Swing Boom | Boom Priority | ||
Bucket Boom | Boom Priority | |||
Arm Boom | Boom Priority | Option | ||
Travel Front | Traval Straight | |||
Conflux | Arm | Internal | ||
Boom | Internal | |||
Bucket | External | Option | ||
Spool Regen | Arm | Spool Internal | Option | |
Boom | Spool Internal | Option | ||
Bucket | Spool Internal | Option | ||
Arm Regen Cut Valve | Internal | O | ||
External | O | Option | ||
Holding | Arm/Boom |

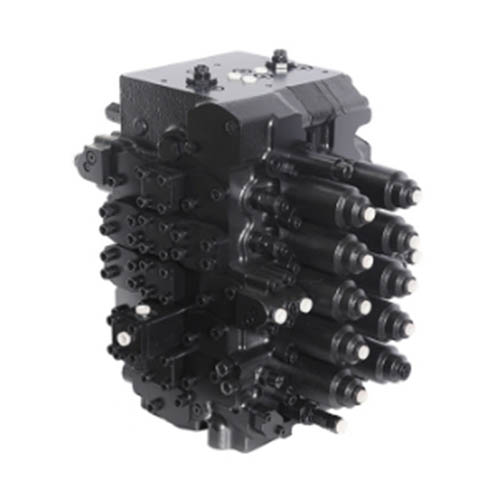

Item | Specification | Remark | ||
Control Type | Negacon | |||
Rated | Pressure | 350 bar | ||
Flow | 460 lpm | |||
Overload Relife | 350~380 bar | |||
Priority Function | Swing Boom | Boom Priority | ||
Swing Arm | Swing Priority | |||
Bucket Boom | Boom Priority | Option | ||
Arm Boom | Boom Priority | |||
Travel Front | Traval Straight | |||
Conflux | Option | Internal | ||
Arm | Internal | |||
Boom | Internal | |||
Bucket | Internal | |||
Spool Regen | Arm | Spool Internal | ||
Boom | Spool Internal | |||
Bucket | Spool Internal | |||
Arm Regen Cut Valve | Internal | O | ||
Holding | Arm/Boom | Option(for Boom2) |
